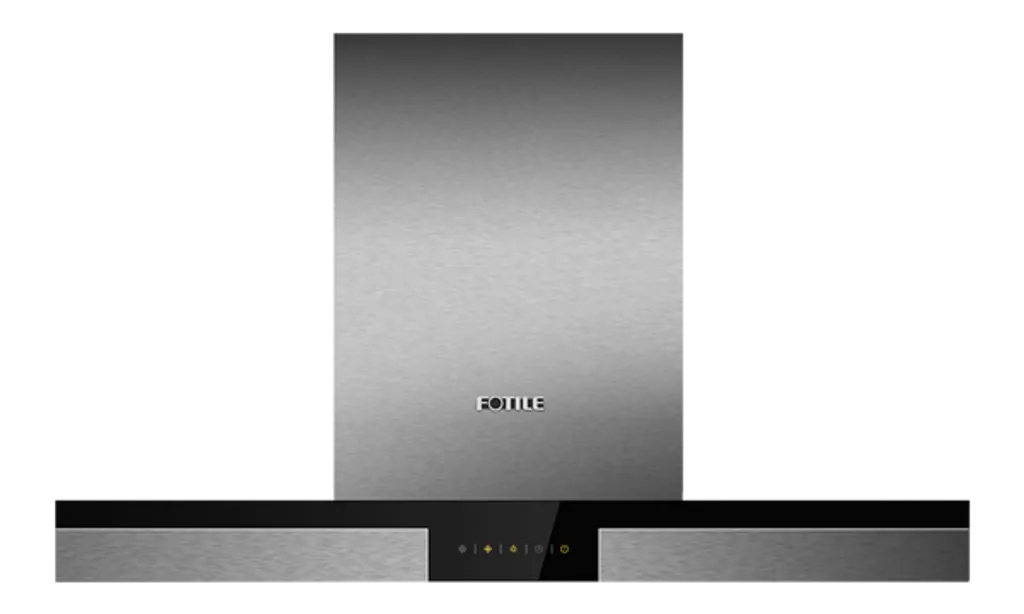

FOTILE HOOD- EMS9020
| Specifications | |
Certification | CB, SAA, SIRIM |
Material of hood | 90cm wide stainless steel with black panel surface design |
Unrestrained airflow (m3/hr) | 1400 |
Motor Power (W) | 200 |
Max Static Pressure (Pa) | 350 |
Noise Level (dB) | 52 |
No. of Speeds Fan Control | 3 |
Illumination Power in LED (W) | 2W x 1 |
Type of hood | Chimney hood |
Oil Filtration Rate | 92% |
Odor Reduction Rate | 97% |
Automatic Turbo System | NO |
Smart Smoke and Sound Detection | NIL |
Intelligent Air Management | NO |
Anion Sterilisation | NO |
3D Ionized Air Curtain | NIL |
Gas & Heat Sensor | NIL |
Delay Off Function | YES |
Control Mode | Illuminated soft touch control |
Type of Filter | Corrugated Filter |
Special Features | NIL |
Power Supply | 220V-240V/50-60hZ |
Dimension W x D x H (mm) | 900 x 520 x (650-940) |
FOTILE Warranty
- 3 Years Warranty for hoods general parts
- 5 Years Warranty for hood's motor
Packaging Details
Inclusive:
- 1 Standard 7" Ducting
- 1 End Cap
- 1 Flue Extension with U- Bracket
Installation Guide
- Self Installation
FOTILE Product Information
Wider Grease and Smoke Control Zone
The Innovative Surround Suction Technology increase the smoke accumulation area of the Fotile W to 0.12m² to ensure that grease and smoke cannot escape from any of the 4 sides of the hood.
Full Acceleration
The innovative M-shaped canopy is paired with the Wing-like Surround Suction Plate, which has a 3° tilt angle, to create a narrow passage in between two wide openings for a faster and more efficient extraction.Multiple Smoke Inlet Paths
Multiple Smoke Inlet Paths
Fotile W Wing-liked Surround Suction Plate achieves a multi-path, simultaneous grease and smoke extraction with a larger amount of smoke intake per unit.
