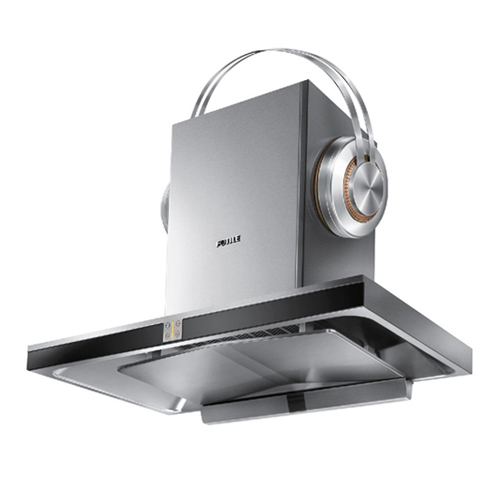

FOTILE HOOD- EMS9016

RM 3,800.00
FOTILE HOOD- EMS9016 Ratings: 0 - 0 votes


Specifications
Certification

CB, SAA, ETL, SIRIM

Material of hood

90cm wide stainless steel with black panel surface design

Unrestrained airflow (m3/hr)

1450

Motor Power (W)

200

Max Static Pressure (Pa)

397

Noise Level (dB)

49

No. of Speeds Fan Control

2

Illumination Power in LED (W)

2W x 1

Type of hood

Chimney hood

Oil Filtration Rate

92%

Odor Reduction Rate

97%

Automatic Turbo System

YES

Smart Smoke and Sound Detection

NIL

Intelligent Air Management

NO

Anion Sterilisation

NO

3D Ionized Air Curtain

NIL

Gas & Heat Sensor

NIL

Delay Off Function

YES

Control Mode

Illuminated soft touch control

Type of Filter

Corrugated Filter

Special Features

NIL

Power Supply

220V-240V/50-60hZ

Dimension W x D x H (mm)

900 x 520 x (680-960)

FOTILE Warranty

  • 3 Years Warranty for hoods general parts
  • 5 Years Warranty for hood's motor

Packaging Details

Inclusive:

  • 1 Standard 7" Ducting
  • 1 End Cap
  • 1 Flue Extension with U- Bracket

Installation Guide

  • Self Installation

FOTILE Product Information

Wider Grease and Smoke Control Zone

The Innovative Surround Suction Technology increase the smoke accumulation area of the Fotile W to 0.12m² to ensure that grease and smoke cannot escape from any of the 4 sides of the hood.

Full Acceleration

The innovative M-shaped canopy is paired with the Wing-like Surround Suction Plate, which has a 3° tilt angle, to create a narrow passage in between two wide openings for a faster and more efficient extraction.Multiple Smoke Inlet Paths

Multiple Smoke Inlet Paths

Fotile W Wing-liked Surround Suction Plate achieves a multi-path, simultaneous grease and smoke extraction with a larger amount of smoke intake per unit.

Multiple Smoke Inlet Paths


Intelligent Suction and Extraction System

Auto Turbo System

Increases extraction power automatically when resistance is detected.

Auto Turbo System

Quiet Operation

The noise level of the Fotile W while in operation is only 49dB. Now you can keep an ear out for your children even when you cook!

Quiet Operation
